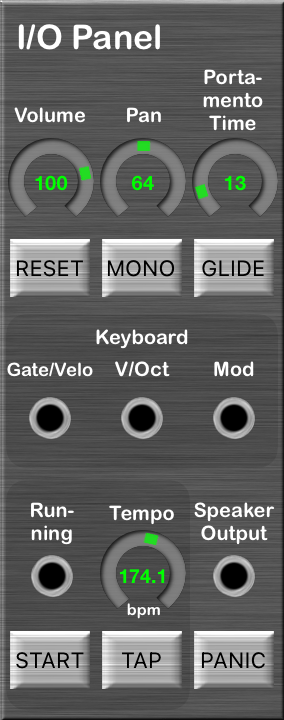

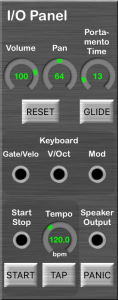

I/O Panel


This is a fixed panel for Input/Output.

Connectors / Parameters

  • Volume

    Change Volume.

  • Pan

    Change Pan position.
    64 — Center.

  • Portamento Time

    Change time during gliding notes.
    0 — Do not glide.
    100 — 1 seconds.
    127 — 20 seconds.

  • RESET button

    Reset all controllers.

  • MONO button

    Toggle Monophonic and Polyphonic.

  • GLIDE button

    Enable always gliding.

  • Gate/Velo

    This outputs the strength with which you press a key.
    The range is -1 ~ 1:
    0 ~ 1 if keys are pressed, -1 if not.

  • V/Oct

    This outputs the pitch of the key.

  • Mod

    This outputs the value of the modulation wheel.
    The range is -1 ~ 1.

  • Start/Stop

    This outputs the state of the button “START”/”STOP”.

  • Tempo

    Set how fast it beats.
    Also you can set Tempo with tapping the button “TAP”.

  • Speaker Output

    The synthesizer outputs this input as sound.

  • PANIC button

    Silence if in panic.

KQ MiniSynthAll modules

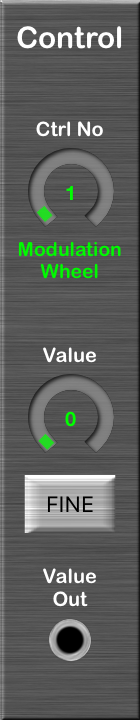

Custom Controller

Dummy Panel

Output MIDI Controller Value.
Use this module if you control the Synth with MIDI signal.
Also it is able to change the value.


  • Ctrl No

    MIDI Control Number.
    LSB controllers are valid though those are not selectable.

  • Value

    A value of the controller.

  • FINE button

    If enabled, the value range is 0 ~ 127.
    If disabled, the range is -8192 ~ 8191.

  • Value Out

    Output the value.
    This outputs -1.0 if the fine value is -8192,
    0 if the value is 0,
    1.0 if the value is 8191, or so on.

KQ MiniSynthAll modules

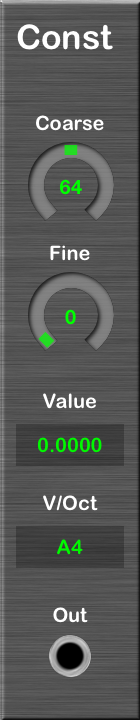

Const Value

This outputs a constant value.

Connectors / Parameters

  • Coarse

    Set a coarse value.

  • Fine

    Set a fine value.

  • Value

    Displays the value.

  • V/Oct

    Displays a note name when the value is treated as V/Oct.

  • Out

    The output.

KQ MiniSynthAll modules

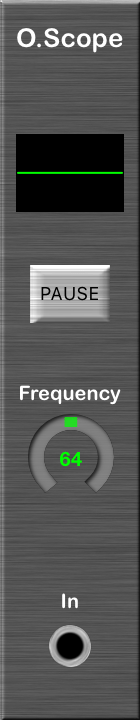

Oscilloscope (Version 3.0)

This module displays the input.

Connectors / Parameters

  • PAUSE button

    Pause the display.

  • Frequency

    Set the sampling frequency.

  • In

    Select sources as input.

KQ MiniSynthAll modules

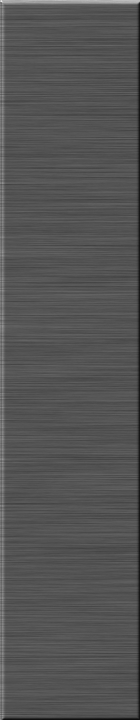

Dummy Panel

Dummy Panel

This is a blank panel.
